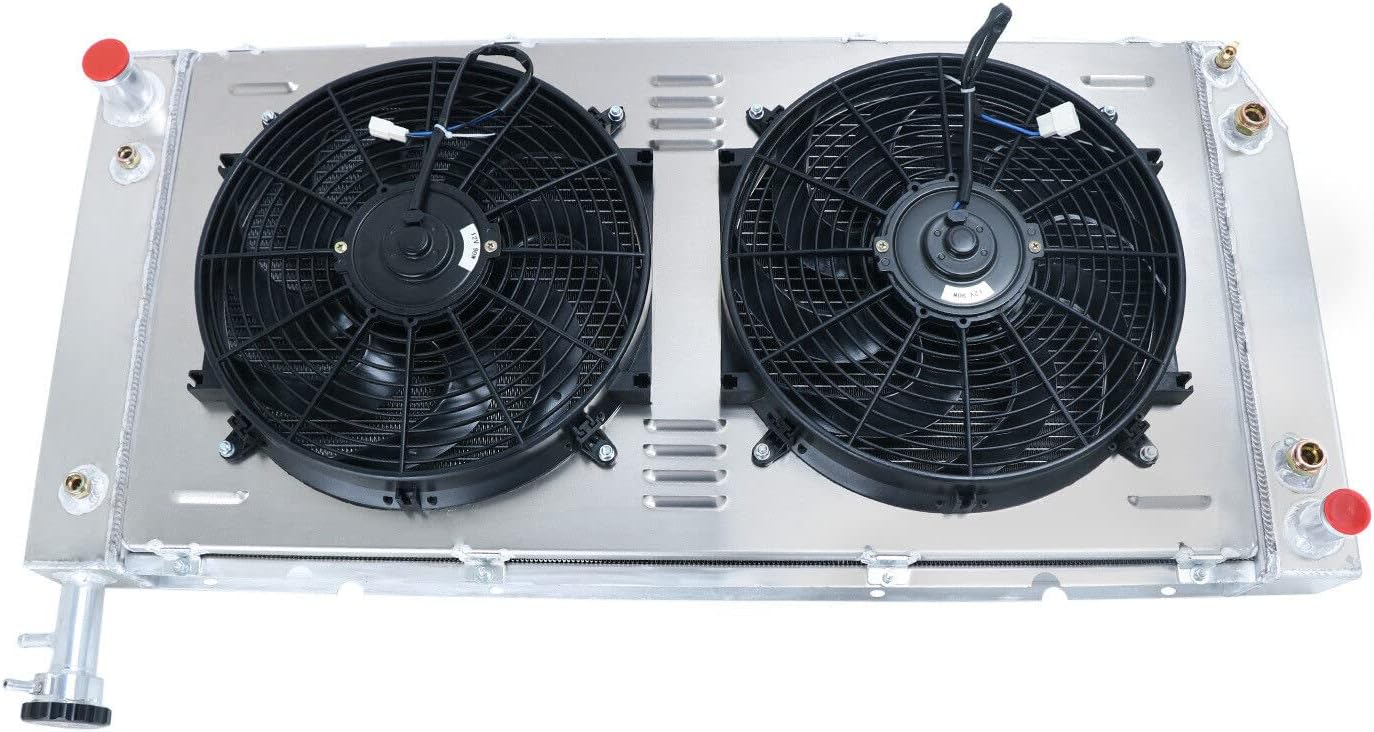

3 Row Aluminum Radiator Compatible with 2004-2016 2009 Chevy Express/GMC Savana 2500/3500/4500 4.8L/6.0L Racing Radiador Crossflow EngineRadiators Shroud 2x14" Fans Thermostat Relay Kit

Fitment:For 2004-2016 Chevrolet Express 2500/3500 4.8L/6.0LFor 2009-2016 Chevrolet Express 4500 6.0LFor 2004-2016 GMC Savana 2500/3500 4.8L/6.0LFor 2009-2016 GMC Savana 4500 4.8L/6.0LPackage Include:1 x 3-Row AA5052 Aluminum Radiator1 x CNC Machined Radiator Cap1 x AA5052 Aluminum Shroud2 x 14" Fans (Includes mounting kits)1 x Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 33.98"H x 17.24"W x 1.73"TOverall Size: 40.55"L x 23.03"WInlet/Outlet: 1.50"/1.75"Inlet Location: Top LeftOutlet Location: Bottom RightTransmission oilcooler: φ26*292*5/8-18UNF(Z)Engine Oil Cooler: YESTransmission Oil Cooler: YESPerformance: Up to 30%~45% More CoolingRadiator Crafts:100% welded by TIG, No EpoxyPlacement on Vehicle: Engine Compartment, FrontMounting Style: Bolt-OnFitment Type: Direct ReplacementSurface Finish: Aircraft Grade Raw AluminumPetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFan Details:Maximum Fan CFM: 2200±200Fan Diameter x Height x Thickness:14.05" x 14.05" x 2.5"Number of Blades: 8 blades (Plastic)Maximum Fan RPM/Amp Draw: 2,250 rpm/12.70 ampsRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.Part NumberOEM Part Number：15107009, 15127536, 15262432, 15262433, 15897984, 2791, 89019353, CU2791, GM3010502, Q2791, RAD2791, RK1112

• 3 Row Core Radiator for 2004-2016 Chevy Express 2500/3500 4.8L/6.0L, for 2009-2016 Chevrolet Express 4500 6.0L, for 04-16 GMC Savana 2500/3500 4.8L/6.0L, for 09-16 GMC Savana 4500 4.8L/6.0L, 2005 2006 2007 2008 2010 2011 12 13 14 15
• Core Size: 33.98"H x 17.24"W x 1.73"T; Overall Size: 40.55"L x 23.03"W; Inlet/Outlet: 1.50"/1.75"; Transmission oilcooler: φ26*292*5/8-18UNF(Z)
• High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
• Easy to Install. Meticulously built to superior OE standards for a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed for Installation
• Crafted by our professional team using the highest-grade materials for exceptional longevity.
